VisiBroker 3.3 for Delphi 5
An introduction in CORBA is followed by the design of a practical real-world CORBA application implemented in Delphi 5 Enterprise. The CORBA application acts as a multi-user electronic personal diary, that can be used to check other people's diaries, make appointments, and so forth. This can be useful in corporate environments where employees are not always working in the same (physical) office.
We'll implement the CORBA Server in Delphi, followed by a CORBA Client in Delphi using three different communication techniques: the Type Library, Dynamic Interface Invocation (DII) and the IDL2PAS that came with VisiBroker 3.3 for Delphi 5.

CORBA
CORBA stands for Common Object Request Broker Architecture. CORBA is platform-independent like Java, and language-independent like COM - truly the best of the best. CORBA is a communication protocol between a client and a server. Communication between these two is handled by an ORB (Object Request Broker) and IIOP (Internet InterORB Protocol).
Before a client and a server can communicate with each other, first a "contract" must be made, that specifies the functionality that will be implemented by the server, and available (to call) for the client. Such a contract is defined using IDL (Interface Definition Language). Using IDL, you can specify a module, which consist of one or more interfaces, each of which can contain methods (and exceptions, but more on that later).
Once the IDL contains the interface contract, it still consists of a platform-independent and language-independent specification. The IDL definition can then be translated into platform-specific and language-specific parts, for example using an IDL2JAVA, IDL2CPP or IDL2PAS.
The IDL is translated into Server Skeletons and Client Stubs. The Server Skeleton defines the module/interface and methods that the server needs to implement, while the client stubs define the module/interface methods that the client can call.
The best thing about CORBA is - again - the fact that it's a cross-platform language-independent communication protocol. Specifically, the client and server do not need to run on the same platform, nor do they need to be implemented in the same language. The crux to make all this work is the ORB which passed a request for a method call on from the client to the server. And while a method call isn't that to pass on, the real work is done when passing the arguments (and values) from one place to another. In order to make sure that arguments values are correctly passed on, they are transferred in a platform-independent language-independent format. When the client calls a method passing some argument, then the arguments are converted to an ORB-specific format (this is called marshalling). When the server received a call, the ORB-specific format is converted back to the correct values native to the platform and language of the server (this is called unmarshalling). And the same happens when the server passes results back to the client.
All in all, CORBA is a powerful cross-platform and cross-language communication protocol that can be used to connect many clients to a single server. And in this session we'll explore the way in which Delphi 5 supports CORBA, using VisiBroker 3.3 for Delphi 5.

Delphi 5 Enterprise
Using Delphi 5 Enterprise you can create a CORBA Data Module or a plain CORBA Object (both Wizards can be found in the Multier tab of the Object Repository). In this session, I'll focus on the plain CORBA Object only, which is the one that can act as a CORBA server (object) for cross-platform cross-language CORBA clients.
The example that I've announced in the introduction of this session is based on a real-world multi-user personal diary (a long description for an "on-line diary", wouldn't you say so?). We've been using an application similar to the one I'm describing in this session for over a year now. Unfortunately, I neither have the space nor time to cover all implementation details here, so I'll stick to the CORBA communication details only (I'm sure you'll understand, as VisiBroker 3.3 for Delphi 5 is indeed the topic for this session).
The on-line diary contains information for employees and their daily activities (for example on an hourly basis). The central server would contain (a database with) all on-line diaries, whereas the remote clients can all access this central server to make appointments with each other. The power of CORBA ensures that nobody really cares how or where the server is implemented (as long as they can connect to it), and neither does the server care where or how the clients are implemented. In this case, obviously, the server is implemented in Delphi 5 Enterprise. And since this is a Delphi session, so will the clients, but you'll see a number of techniques that will also (or especially) be useful on "foreign" servers or "foreign" clients.

Delphi 5 CORBA Server
To create a Delphi 5 CORBA Server application, you need to start a new application (with a main form that can act as "identifier" to show that the server is up and running). To this application, which I've called DiarySrv, you need to add a Corba Object (from the Multitier page of the Object Repository).

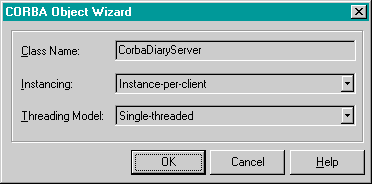

Inside the CORBA Object Wizard, you need to specify the Class Name of the CORBA object. This will be the name of the interface (with an I-prefix) as well as the TCorbaImplementation descendant class (with the T-prefix) that your CORBA application will create and use. The interface is the important part here: this is where you can specify the methods that the server needs to implement (and the client can call). In Delphi 5, specifying these interface methods is done using the Type Library. This gives CORBA a bit of a COM taste, but it's not truly COM (it's only using interfaces behind the scene - the actual communication is still done using CORBA). Anyway, specify a class name here (such as CorbaDiaryServer), leave the Instancing and Threading-model options at their default values, and hit OK.

Type Library Editor

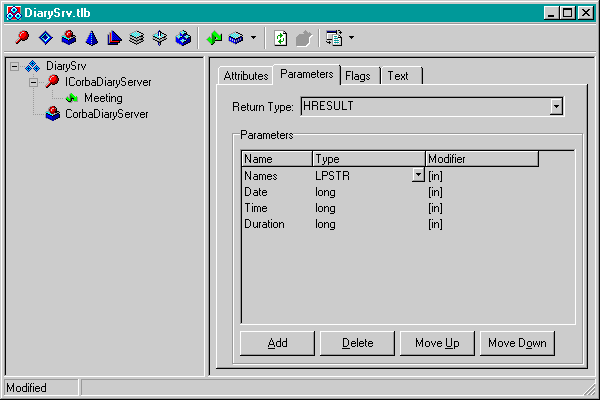

After you've created the new CORBA Object, you must start the Type Library Editor to specify the interface definition of the CORBA server. In my case, I need to specify a single method called Meeting, with four arguments: Names, Date, Time and Duration. Names is a PChar (LPSTR) that contains the (unique specified) names of the people that need to be present at that meeting (and hence it would be nice if they were to be automatically notified). Date and Time are in the YYYYMMDD and HHMM formats, which makes them sortable! And finally Duration specifies the number of minutes the meeting is supposed to last (note: 24*60 = 1440 minutes make up an entire day).

You should hit the "Refresh Implementation" button to make sure the Delphi unit for the CorbaDiaryServer contains this (still empty) method Meeting. Once the method Meeting is available, you can implement it anyway you want (in the session, I'll just e-mail it to the office manager, who then has to make sure the appointments are made - but you're free to make a more sophisticated implementation, of course).

Type Library Editor Limitations
While the Type Library Editor is a convenient way for Delphi developers to specify the interface of a (CORBA or COM) object, there are a number of limitations when using the Type Library Editor. It just doesn't support everything CORBA has to offer, like structured types (records) or CORBA exceptions. This may not be a big deal for the average Delphi developer, but for a CORBA developer it's a big deal. Later in this session, I'll show you VisiBroker 3.3 for Delphi 5, which does not have these limitations.

Exporting IDL
Apart from implementing the interface definition, you should also export it in order to make sure that potential CORBA clients know which method(s) are available, and which arguments to these methods. And although you've used the Type Library Editor so far, you haven't really seen IDL, yet (remember the theory part at the beginning of this session?).
While still in the Type Library Editor, you must also export the type library definition as CORBA IDL, so any CORBA client can use this IDL to generate client stubs. Simply select the "Export to CORBA IDL" using the last button on the right of the Type Library Editor. This resulting IDL file can be used by CORBA clients, for example implemented using JBuilder, C++Builder or - indeed - Delphi.
The IDL file for the module DiarySrv with example interface ICorbaDiaryServer (and method Meeting) should look similar to this:

  module DiarySrv
  {
    interface ICorbaDiaryServer
    {
      void Meeting(in string Names,
                   in long Date, // yyyymmdd
                   in long Time, // hhmm
                   in long Duration);
    };

    interface CorbaDiaryServerFactory
    {
      ICorbaDiaryServer CreateInstance(in string InstanceName);
    };
  };

Running CORBA Server
Before you can run the CORBA Server, you must first make sure the (VisiBroker) Smart Agent is running. You can find the Smart Agent in your Delphi program group, or as osagent.exe in your VBROKER\BIN directory. The Smart Agent can be seen as the telephone service; without it, you cannot reach the ORB or send CORBA messages from one place to another.
When the Smart Agent runs (on at least one machine in the subnet), you can run the CORBA Server. The server will "register" itself with the Smart Agent, and from that moment on will wait until you terminate it again, or a call from CORBA client comes in (dispatched by the Smart Agent). Time to leave the CORBA Server alone, and start working on CORBA clients to connect to it...

Delphi 5 CORBA Clients
There are three different ways to create a CORBA Client using Delphi 5. The oldest way is using the Type Library import unit (provided a CORBA Server was written in Delphi 5 that used a Type Library), and use that to create a (CORBA) object instance and call its methods. Note that this only works when both the CORBA client and server are written in Delphi; so I don't consider this "pure" CORBA (but you'll see how it works anyway, because you do get a great deal of design-time support).
The second way to create a CORBA client, when you have an IDL file and no Type Library at your disposal, is by registering the IDL file inside the Interface Repository, and using Dynamic Interface Invocation to create an object and call its methods. This technique is very flexible (when the interface changes, your client can dynamically adapt to it), but also harder to implement. Apart from that, due to the dynamic nature of the interface, there is hardly any design-time support. CORBA, yes, but hardly the Delphi-way, as you will see shortly.
The third and without a doubt best way to create CORBA clients in Delphi is by using an add-on tool available for Delphi 5 Enterprise called VisiBroker 3.3 for Delphi 5. This add-on tool, contains an IDL2PAS compiler that produces client stubs from IDL files. During the session, I'll be using a later edition of VisiBroker 3.3 for Delphi 5 (with special permission from Borland's Ben Riga), which - at the time of writing - is not yet publicly available! However, the techniques shown will be quite useful to CORBA developers...

1. CORBA Client using Type Library
The easiest way to connect a Delphi CORBA Client to an existing Delphi CORBA Server (that was made using the Type Library Editor) is by using the Type Library Import unit. Start a new project and add the Type Library import unit from the CORBA Server to your CORBA Client project. The import unit contains the factory constructor that you need to call in order to create an instance of the CORBA server. It also contains the full definitions of the methods that belong to the interfaces (so you get full design-time support including CodeInsight help for arguments). After you've created the CORBA server, you can call its methods as if they were local methods. For example, to call the Meeting method, you need to write the following code:

  procedure TCorbaDiaryClient.TypeLibrary(Sender: TObject);
  var
    CorbaDiaryServer: ICorbaDiaryServer;
  begin
    CorbaDiaryServer := TCorbaDiaryServerCorbaFactory.CreateInstance('CorbaDiaryServer');
    CorbaDiaryServer.Meeting('Bob Swart',20000925,1715,75);
    CorbaDiaryServer := nil
  end;

2. CORBA Client using Dynamic Interface Invocation
Although I will only be using Delphi 5 Enterprise during this session, just for the sake of argument let's assume the CORBA Server is written in some "foreign" environment and/or you do not have the Type Library (import unit) available when you start to write the CORBA Client in Delphi 5. Instead, you only start with an IDL file that defines the interface that the CORBA Server implements and is available for your CORBA Client to call. Some people have imported an IDL definition in the "text" page of the Type Library and hit the "refresh" button to generate the corresponding Delphi interface - I won't be doing that, since I've already explained that the Delphi Type Library does not contain full support for the CORBA IDL (so this might or might not work, depending on the IDL features that are used).

The Interface Repository
Since Delphi (out-of-the-box) can't directly use the IDL we've just written, you must use a different technique. The CORBA client will dynamically communicate with a repository that stores available interfaces. This repository is called the Interface Repository. It needs to be connected to an ORB, so it can connect the CORBA Server that implements this interface (method) with the CORBA client that requests this interface (method). The technique of connecting like this is also known as "late binding". If you "load" an interface definition (IDL file) inside the Object Repositor, then it's available for use by all CORBA clients that can talk to the Interface Repository (which isn't hard, as you'll see in a minute).

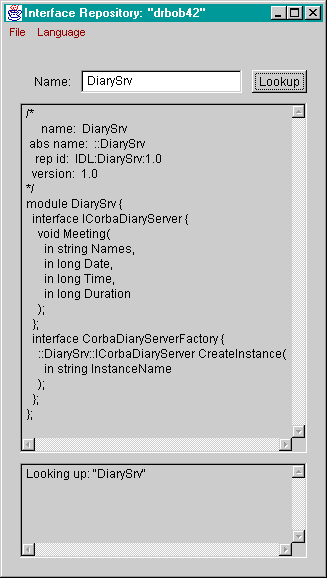

First, let's start the Interface Repository and load the "DiarySrv.idl" file in it. This can be done by the following command-line:

  start irep drbob42 DiarySrv.idl

The Delphi client is now able to access the IDL and invoke methods dynamically.

Dynamic Interface Invocation
The code needed to dynamically obtain an object reference is using the Orb.Bind method, after which you can call any method from this CORBA server object reference. Note that method calls are now case-sensitive (and you won't get any design-time support using CodeInsight):

  procedure TCorbaDiaryClient.DynamicInterfaceInvocation(Sender: TObject);
  var
    Factory: TAny;
    CorbaDiaryServer: TAny;
  begin
    Factory := Orb.Bind('IDL:DiarySrv/CorbaDiaryServerFactory:1.0');
    CorbaDiaryServer := Factory.CreateInstance('CorbaDiaryServer');
    CorbaDiaryServer.Meeting('Bob Swart',20000925,1715,75);
    CorbaDiaryServer := unassigned;
    Factory := unassigned
  end;

3. CORBA Client using IDL2PAS
The first public edition of VisiBroker 3.3 for Delphi 5 Enterprise shipped at the end of 1999. If contained an IDL2PAS batch file, some examples and documentation (including a VisiBroker 3.3 for Pascal Reference Guide in PDF format).

The IDL2PAS batch file "compiles" a CORBA IDL file, like DiarySrv.idl, into DiarySrv_i.pas and DirarySrv_c.pas. The DiarySrv_i.pas file will get the interface definition, while the DiarySrv_c.pas file will get the client stub definitions. As you may have noted, there was on support for server skeletons, which would have been ended up in a _s or _impl file. During the session in London, I'll show the latest version of IDL2PAS that also generates server skeletons.
Using the generated DiarySrv_i.pas and DiarySrv_c.pas files with the new CORBA and OrbPas30 units (that also come with VisiBroker 3.3 for Delphi 5), you can now statically bind to any CORBA server. To do so, you must first create the Factory of type CorbaDiaryServerFactory (defined in the DiarySrv_c.pas unit), by calling TCorbaDiaryServerFactoryHelper.Bind with CorbaDiaryServer as argument. With this Factory instance, you can create the CORBA server itself by calling the CreateInstance method with CorbaDiaryServer as argument.

  uses
    CORBA, OrbPas30, DiarySrv_i, DiarySrv_c;

  procedure TCorbaDiaryClient.IDL2PAS(Sender: TObject);
  var
    Factory: CorbaDiaryServerFactory;
    CorbaDiaryServer: ICorbaDiaryServer;
  begin
    Factory := TCorbaDiaryServerFactoryHelper.Bind('CorbaDiaryServer');
    CorbaDiaryServer := Factory.CreateInstance('CorbaDiaryServer');
    CorbaDiaryServer.Meeting('Bob Swart',20000925,1715,75);
    CorbaDiaryServer := nil;
    Factory := nil
  end;

VisiBroker 3.3 for Delphi 5
During the session, I'll be using a later edition of VisiBroker 3.3 for Delphi 5 (with special permission from Borland's Ben Riga), which - at the time of writing - is not yet publicly available! However, the techniques shown will be quite useful to CORBA developers - even if they still use the first (original) public edition of VisiBroker 3.3 for Delphi 5.

CORBA structs
Let's start with a a CORBA feature that is supported by the original IDL-2-PAS - and not available when using the Type Library import unit. I'm talking about the support for CORBA structs, which are a bit similar to plain ObjectPascal record types (to be honest, CORBA structs are a lot more powerful since they can contain recursive definitions, but that's a story for another day). To extend your DiarySrv example, you can combine the Date and Time integer values in a single structure DateTime defined as follows in IDL (note that I merged the Date and Time arguments to the Meeting method as well):

  module DiarySrv
  {
    struct DateTime {
      long Date;
      long Time;
    };

    interface ICorbaDiaryServer
    {
      void Meeting(in string Names,
                   in DateTime DayTime,
                   in long Duration);
    };

    interface CorbaDiaryServerFactory
    {
      ICorbaDiaryServer CreateInstance(in string InstanceName);
    };
  };

  type
    DateTime = interface
      ['{5070DDE7-BD49-0C52-68CE-EF2214199CB8}']

      { Accessor and mutator methods for IDL Structure Elements. }
      function   _get_Date : Integer;
      procedure  _set_Date (const Date : Integer);
      function   _get_Time : Integer;
      procedure  _set_Time (const Time : Integer);

      { Properties representing IDL Structure Elements. }
      property  Date : Integer read _get_Date write _set_Date;
      property  Time : Integer read _get_Time write _set_Time;
    end;

  type
    TDateTime = class (TInterfacedObject, DiarySrv_i.DateTime)
    private
      Date : Integer;
      Time : Integer;
      constructor Create; overload;
    public
      function   _get_Date : Integer; virtual;
      procedure  _set_Date ( const _value : Integer ); virtual;
      function   _get_Time : Integer; virtual;
      procedure  _set_Time ( const _value : Integer ); virtual;
      constructor Create (const Date : Integer;
                          const Time : Integer); overload;
    end;

CORBA Exceptions
It's nice to have support for CORBA structs (and this was available in the original edition of VisiBroker 3.3 for Delphi 5), but what about error handling and recovery? Delphi 5 has no built-in support for CORBA exceptions. And even the original VisiBroker 3.3 for Delphi 5 only supports client-side CORBA exceptions. Only client-side? Yes, and that means that the CORBA client is able to "catch" (or handle) exceptions using a try-except block, but the CORBA server is not (yet) able to raise any CORBA exceptions. And this includes standard as well as custom CORBA exceptions. The next edition of VisiBroker 3.3 for Delphi 5 actually supports CORBA server-side exceptions as well (great news!), so let's examine CORBA exceptions in a bit more detail.
A CORBA exception is like a struct definition in IDL. You can add data (fields), but no functionality (no methods). Apart from that, you cannot built an exception hierarchy, as structs cannot be derived from other structs (for me, this is one of the few minor disappointments when using CORBA).
To extend the DiarySrv example with CORBA exceptions, consider the situation where I try to setup a meeting using the Meeting method, only to find that there was no way to signal that a meeting is impossible to schedule. It would be nice to get a notification of such an event, by raising an exception (containing useful feedback information, if possible). You can define an "MeetingImpossible" exception, which can be raised if one or more of the people can't attend the meeting (or if the Date/Time is invalid). Using IDL, you can define an exception MeetingImpossible, including a property called Reason, and extend the DiarySrv.idl until we get the final version:

  module DiarySrv
  {
    exception MeetingImpossible
    {
      string Reason;
    };

    struct DateTime {
      long Date;
      long Time;
    };

    interface ICorbaDiaryServer
    {
      void Meeting(in string Names,
                   in DateTime DayTime,
                   in long Duration)
        raises (MeetingImpossible);
    };

    interface CorbaDiaryServerFactory
    {
      ICorbaDiaryServer CreateInstance(in string InstanceName);
    };
  };

  type
    EMeetingImpossible = class(UserException)
    private
      FReason : AnsiString;
    protected
      function  _get_Reason : AnsiString; virtual;
    public
      property  Reason : AnsiString read _get_Reason;
      procedure Copy(const _Input : InputStream); override;
    end;

  type
    EMeetingImpossible = class(UserException)
    private
      FReason : AnsiString;
    protected
      function  _get_Reason : AnsiString; virtual;
    public
      property  Reason : AnsiString read _get_Reason;
      constructor Create; overload;
      constructor Create(const Reason : AnsiString); overload;
      procedure Copy(const _Input : InputStream); override;
      procedure WriteExceptionInfo(var _Output : OutputStream); override;
    end;

  raise DiarySrv.EMeetingImpossible('Exception raised by Delphi 5');

  uses
    CORBA, OrbPas30, DiarySrv_i, DiarySrv_c;

  procedure TCorbaDiaryClient.IDL2PAS(Sender: TObject);
  var
    CorbaDiaryServer: ICorbaDiaryServer;
    DateTime: TDateTime;
  begin
    Server :=  TICorbaDiaryServerHelper.Bind;
    DateTime := TDateTime.Create(200009,13);
    try
      Server.Meeting('Micha, Rick, Arnim',DateTime,75);
    except
      on E: EMeetingImpossible do
        ShowMessage(E.Reason)
    end;
    DateTime.Free;
    CorbaDiaryServer := nil
  end;

CORBA Server Skeletons
Apart from generating exception types that can be used for server-side exception raising, the IDL2PAS that comes with new edition of VisiBroker 3.3 for Delphi 5 also generates true Server Skeleton code, generating both an DiarySrv_s.pas and DiarySrv_impl.pas unit (as we'll explore in detail during the session). This last feature truly makes the Type Library Editor and Import Unit obsolete for CORBA develoment using Delphi.

Conclusions
Delphi supports CORBA servers with a Type Library Editor/Import Unit interface as well as using Dynamic Interface Invocation (DII) or by a true IDL2PAS as part of VisiBroker 3.3 for Delphi 5. The latest edition of VisiBroker 3.3 for Delphi 5 supports CORBA structs and client-side as well as server-side exceptions as a few of the more interesting CORBA features - apart from client stubs and server skeletons. It's only a matter of time before this - yet unreleased - edition of VisiBroker 3.3 for Delphi 5 is made available to the Delphi Community.
And at that time only one personal wish remains: support for VisiBroker 4 in Delphi 6 (as the current VisiBroker 3.3 for Delphi 5 is still version 3.3).
